Evacuated Tube Collector Trainer
Code: ICF-STH-EVT-I02
Description
The ICF-STH-EVT-I02 Is Designed To Provide Students With A Comprehensive Understanding Of Solar Thermal Systems. This Trainer Enables Hands-on Experimentation And Investigation Into How Solar Energy Can Be Collected, Stored, And Used For Heating Purposes, Specifically Focusing On The Advanced Technology Of Evacuated Tube Collectors.
Specifications
- Accumulator Tank - Volume: 150 liters. - Dimensions: 50 cm (diameter) x 150 cm (height).
- Pump: - Flow Rate: 900 liters per minute (LPM). - Power: 200 W.
- Buffer Tank: - Volume: 40 liters. - Radius: 35 cm.
- Heat Exchanger - Heat exchange area（m²）: （n-2）0.014. - Design temperature:-196~200
- Pressure Rating: 4 bar.
- Evacuated Dimensions: 3.2 m².
- Trainer Dimensions: 210 cm (width) x 180 cm (depth) x 245 cm (height).
- Irradiance - Value: 2000 W/m². - Size: 212 cm x 90 cm x 90 cm. - Lux: 4 lux = 1000 watts each.
- Temperature Sensor - Range: 0°C to 200°C. - Accuracy: ±0.1°C.

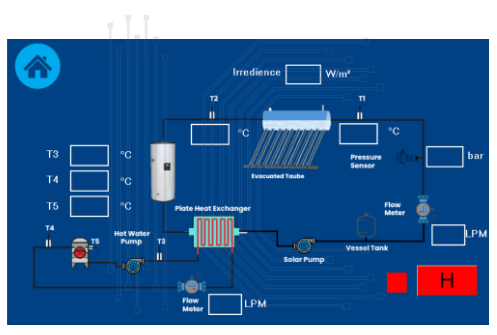

- HMI:7 inch.
